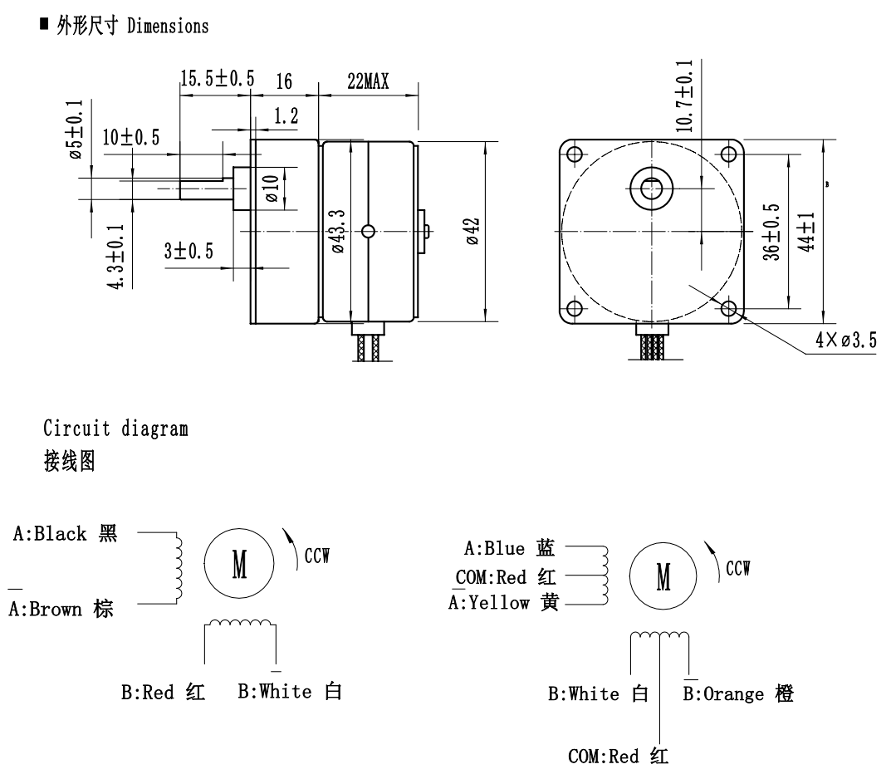

42BY44J 减速永磁步进电动机
典型应用场景：小型输液泵，分析仪器的微量推送机构，智能水表/气表的阀门控制，智能门锁的锁舌驱动，智能洁具，雨刮器
重量：150g
|
型号
|
电压
|
相数
|
相电阻
|
驱动方式
|
步距角
|
减速比
|
起动频率
|
静转矩
|
绝缘耐压
|
绝缘等级
|
|
Model
|
Voltage
(V)DC
|
Phase
|
Resistance/phase
(Ω)
|
Drive Method
|
Step Angle
（Deg）
|
Speed Ratio
|
Pull in Rates（PPS）
|
Holding Torque (g.cm)
|
Dielectric Stength
|
Class of insulation
|
|
42BY26-30-50J
|
12
|
2
|
30
|
2-2 Bipolar
|
15/50
|
1:50
|
320
|
15000
|
500V AC 1Min
|
E
|
|
42BY46-30-50J
|
12
|
4
|
30
|
4-2 Unipolar
|
15/50
|
1:50
|
300
|
12000
|
500V AC 1Min
|
E
|
|
42BY28-30-50J
|
12
|
2
|
30
|
2-2 Bipolar
|
11.25/50
|
1:50
|
320
|
18000
|
500V AC 1Min
|
E
|
|
42BY48-30-50J
|
12
|
4
|
30
|
4-2 Unipolar
|
11.25/50
|
1:50
|
300
|
16000
|
500V AC 1Min
|
E
|
|
42BY212-30-50J
|
12
|
2
|
30
|
2-2 Bipolar
|
7.5/50
|
1:50
|
320
|
20000
|
500V AC 1Min
|
E
|
|
42BY412-30-50J
|
12
|
4
|
30
|
4-2 Unipolar
|
7.5/50
|
1:50
|
300
|
18000
|
500V AC 1Min
|
E
|
|
减速比可选 Reduction ratio: 10,15,20,30,50,75,100,120,150
|
|
|
