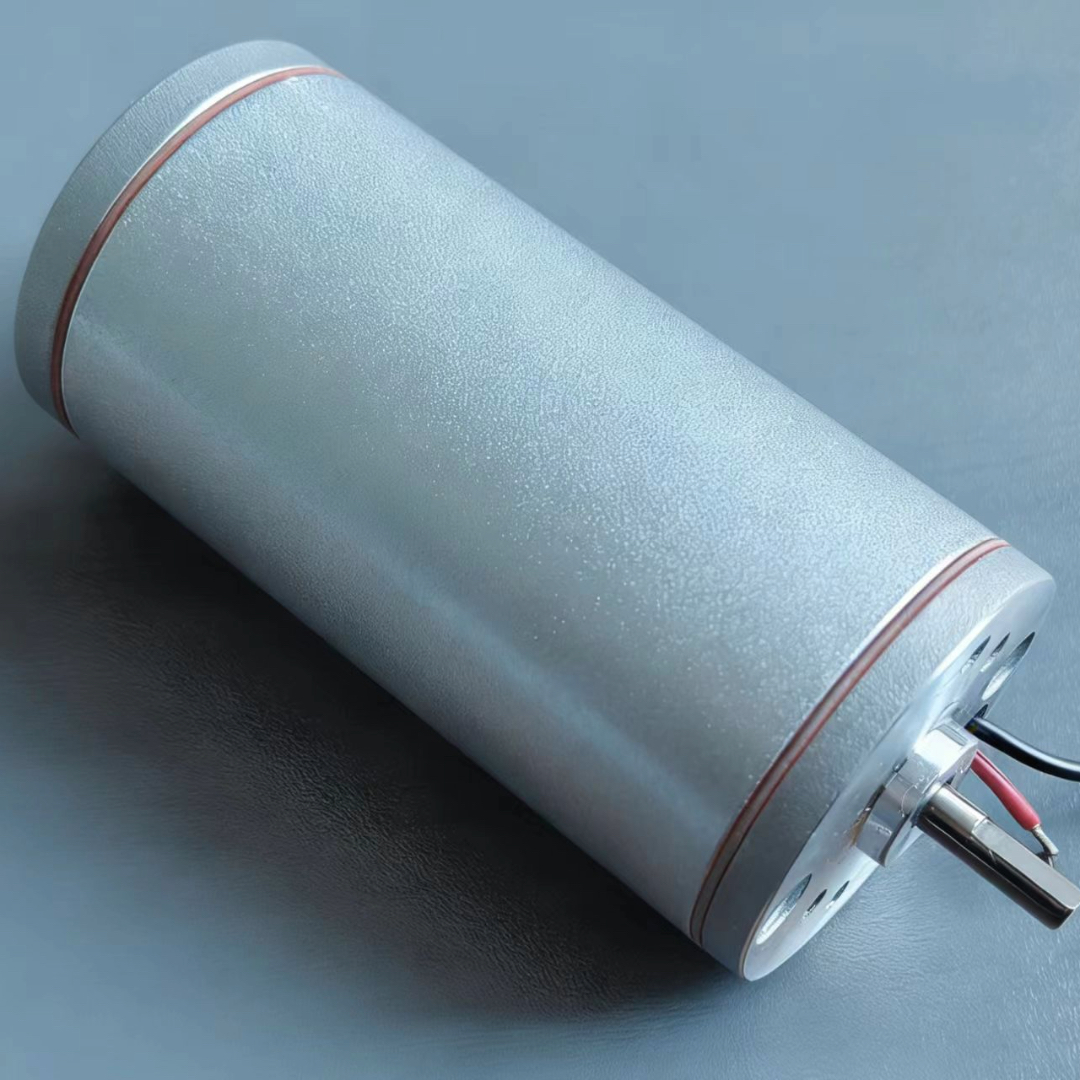

典型应用场景：推杆装置，自动阀门，精密送料进给装置，自动售货机出料机构，输液泵，汽车电动后视镜 座椅调节，天窗执行器 重量：300g
|
型号
|
额定电压
|
空载转速
|
额定转速
|
额定转矩
|
额定电流
|
堵转扭矩
|
堵转电流
|
绝缘耐压
|
绝缘等级
|
|
Model
|
Rated Voltage
(V)DC
|
No Load Speed
(RPM)
|
Rated Speed
(RPM)
|
Rated Torque
(g.cm)
|
Rated Current
(mA)
|
Stall Torque
(g.cm)
|
Stall Current
(mA)
|
Dielectric Strength
|
Class of insulation
|
|
38ZY-12-2000
|
12
|
2000
|
1400
|
400
|
520
|
780
|
960
|
500V AC 1Min
|
E
|
|
38ZY-12-3000
|
12
|
3000
|
2100
|
550
|
580
|
950
|
1050
|
500V AC 1Min
|
E
|
|
38ZY-12-4000
|
12
|
4000
|
2800
|
650
|
650
|
1050
|
1250
|
500V AC 1Min
|
E
|
|
38ZY-12-5000
|
12
|
5000
|
4000
|
750
|
780
|
1250
|
1550
|
500V AC 1Min
|
E
|
|
38ZY-24-1000
|
24
|
1000
|
700
|
400
|
300
|
750
|
550
|
500V AC 1Min
|
E
|
|
38ZY-24-2000
|
24
|
2000
|
1400
|
500
|
300
|
800
|
600
|
500V AC 1Min
|
E
|
|
38ZY-24-3000
|
24
|
3000
|
2100
|
650
|
380
|
1050
|
720
|
500V AC 1Min
|
E
|
|
38ZY-24-4000
|
24
|
4000
|
3000
|
750
|
500
|
1250
|
1000
|
500V AC 1Min
|
E
|
|
38ZY-24-5000
|
24
|
5000
|
3500
|
850
|
550
|
1500
|
1050
|
500V AC 1Min
|
E
|
|
|
